Capacitor practice problems
Refresh the page to get a new problem.

Read the capacitor class notes.

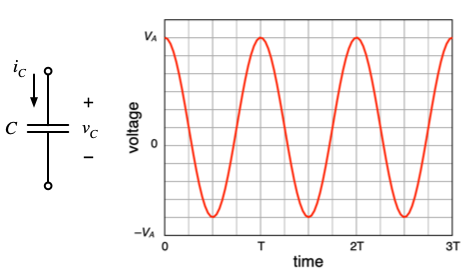

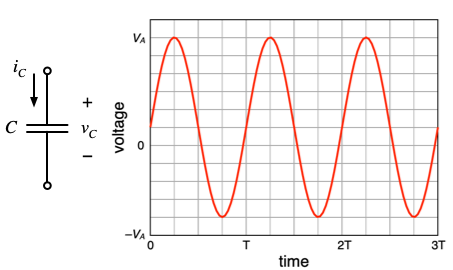

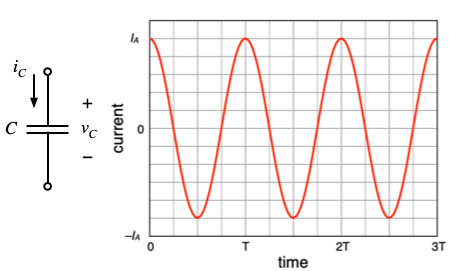

The voltage across a capacitor with C = 150 pF varies in time as shown in the graph,
where V_P = 16 V, t₁ = 20 μs, t₂ = 40 μs, and t₃ = 100 μs.

Calculate the capacitor currents during each of the time intervals, i₁ (during t₁), i₂ (during t₂), and i₃ (during t₃).

Answer
